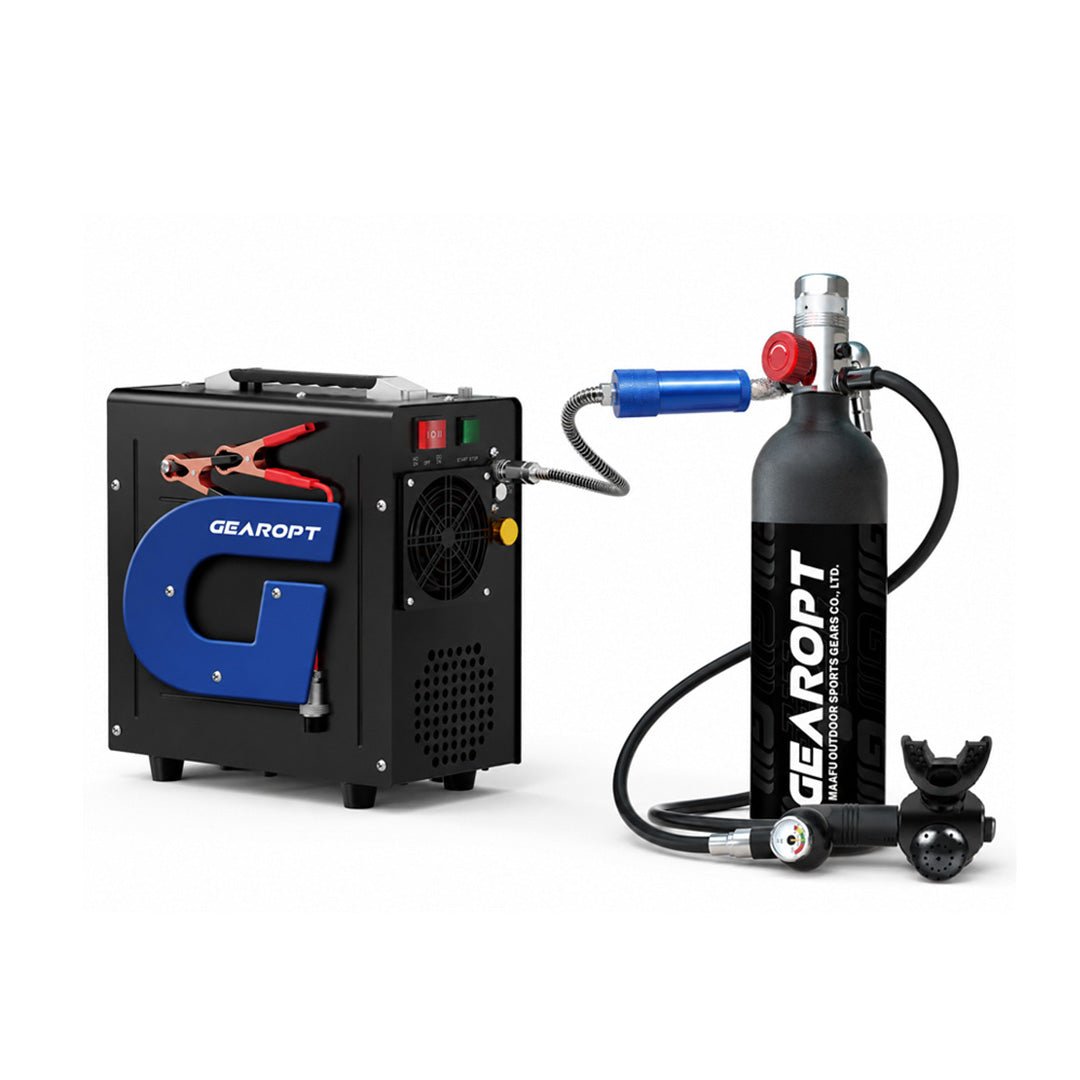

GEAROPT High-Pressure Compressor
*Always follow the product manual. Fill only with clean, dry, breathable compressed air and never exceed the rated working pressure of your Mini Tank.
Built for Fast, Flexible Refills

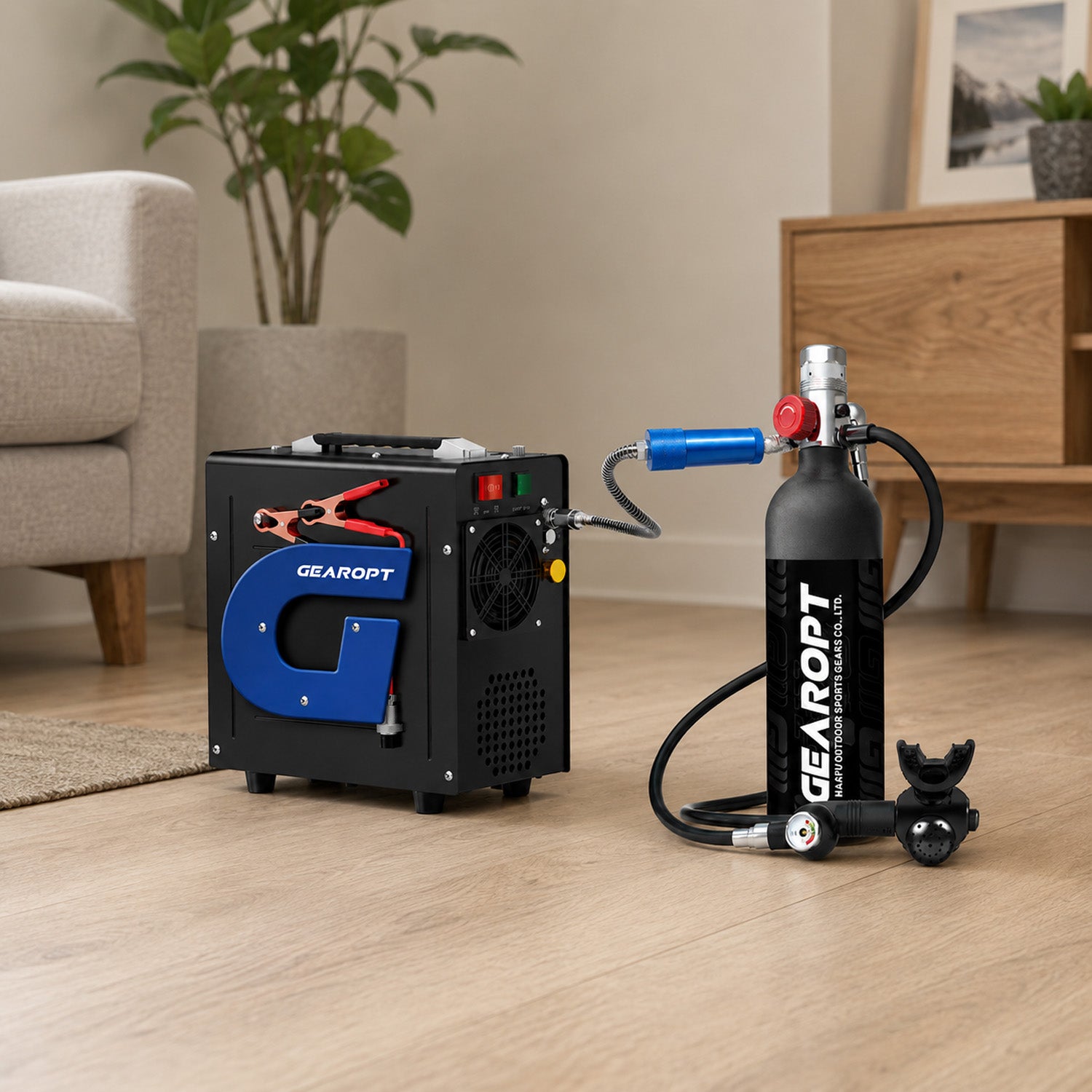

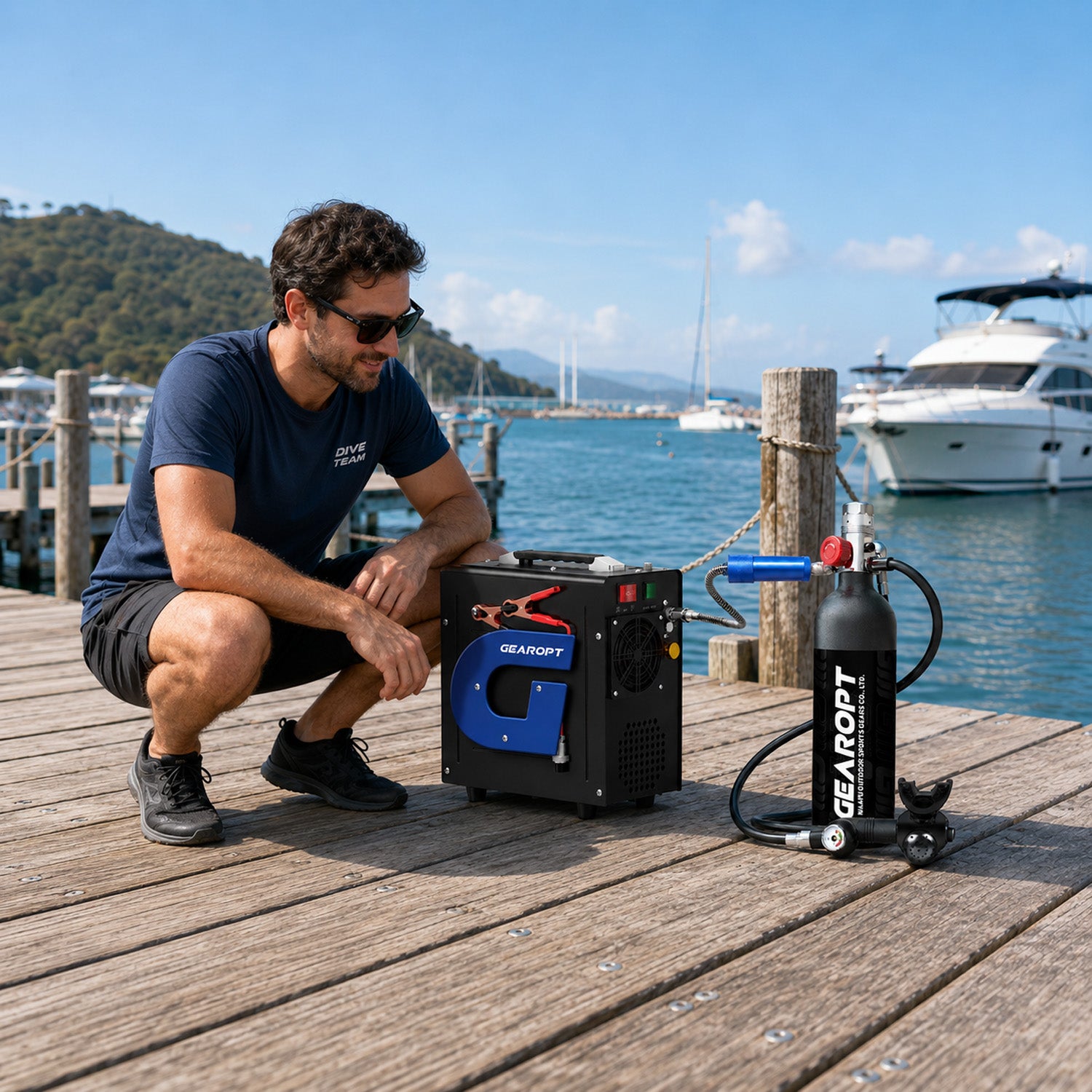

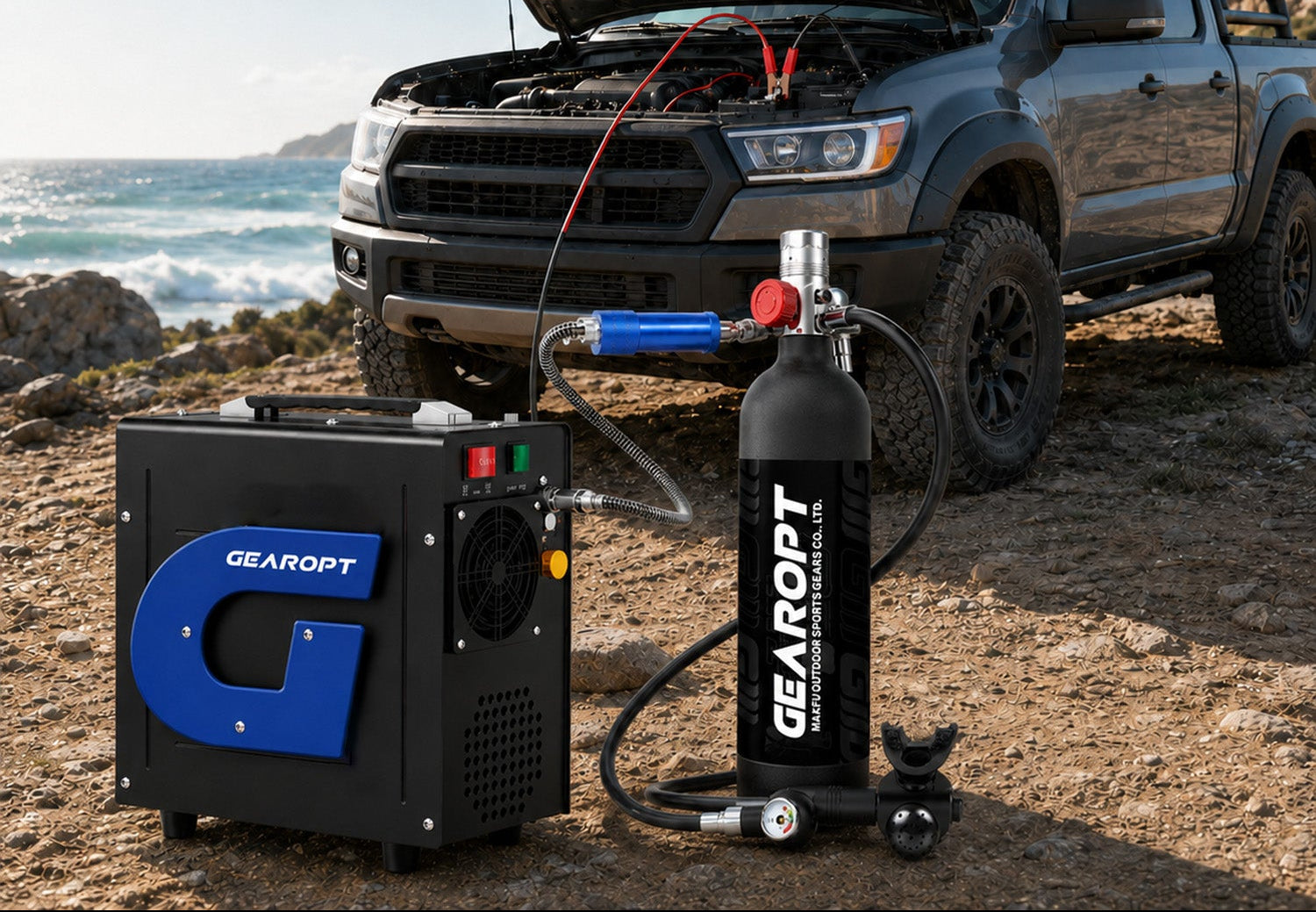

From home preparation to dockside setup, this compact compressor provides practical refill support for compatible
GEAROPT Mini Tanks. Dual power support, filtration and automatic protection help make every refill more controlled.
Technical Core
12V DC / 110V–220V AC
350 Watts
25 Amps
8 L/min
8 mm
4500 PSI / 30 MPa
60 dB
11.02 × 6.29 × 11.41 in
0.5L - 15 min / 1L - 30 min
Set the target pressure before filling. The compressor stops automatically when the preset pressure is reached.

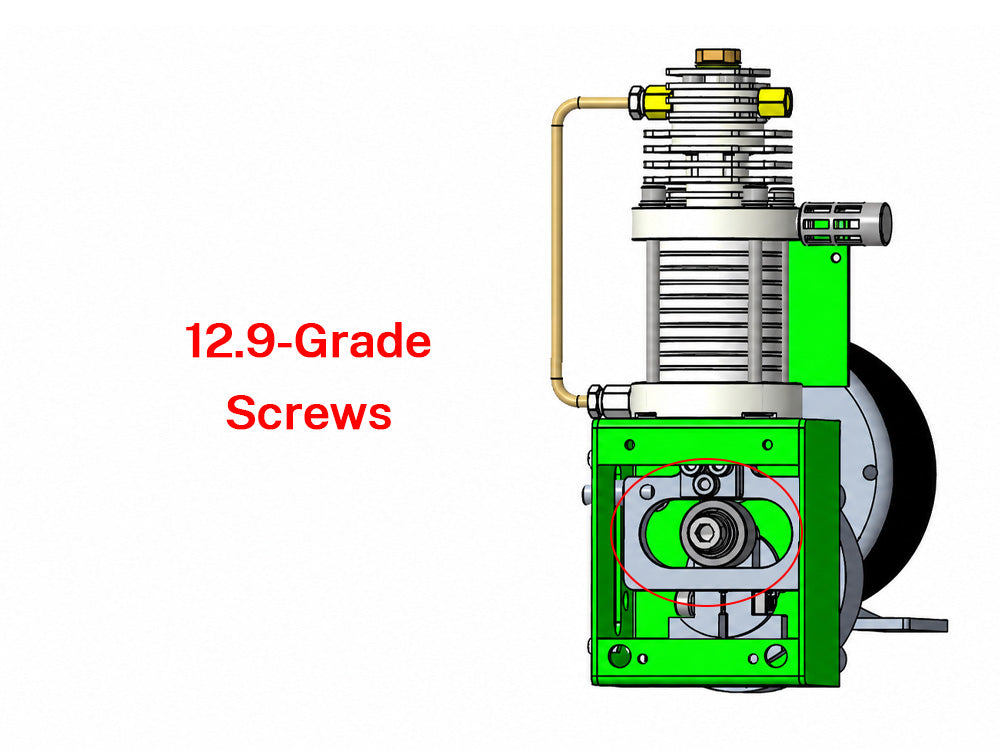

12.9-Grade Screws
The locking rod structure uses high-strength 12.9-grade screws to support stronger fastening and more stable operation.

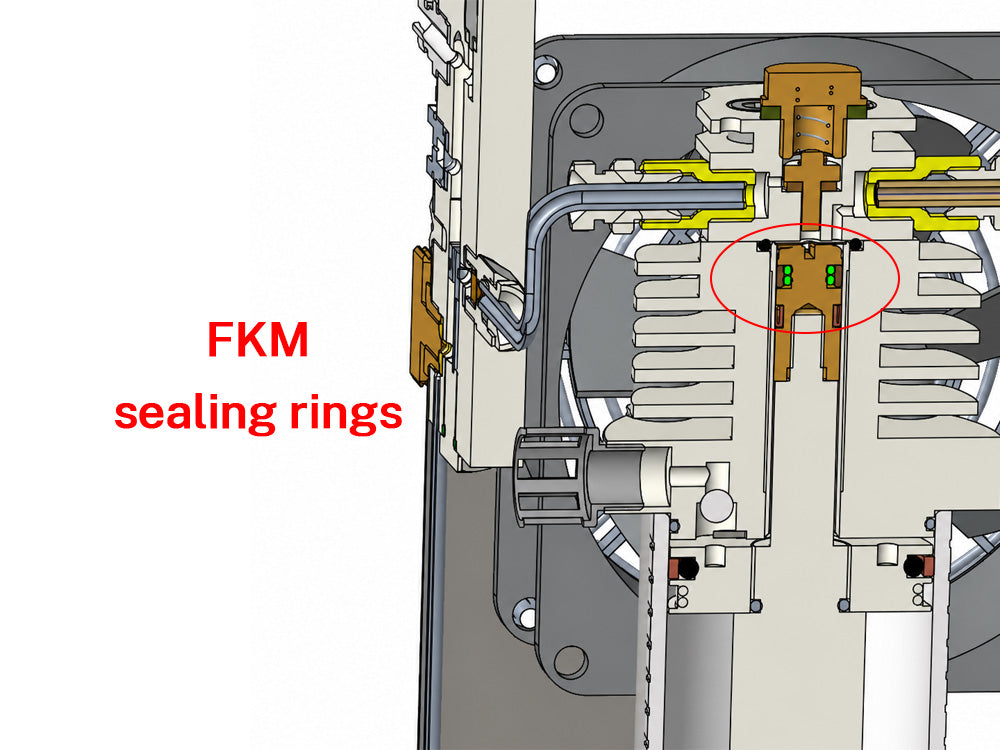

Heat-Resistant Sealing
FKM sealing rings are used for better heat resistance and longer-lasting sealing performance under repeated use.

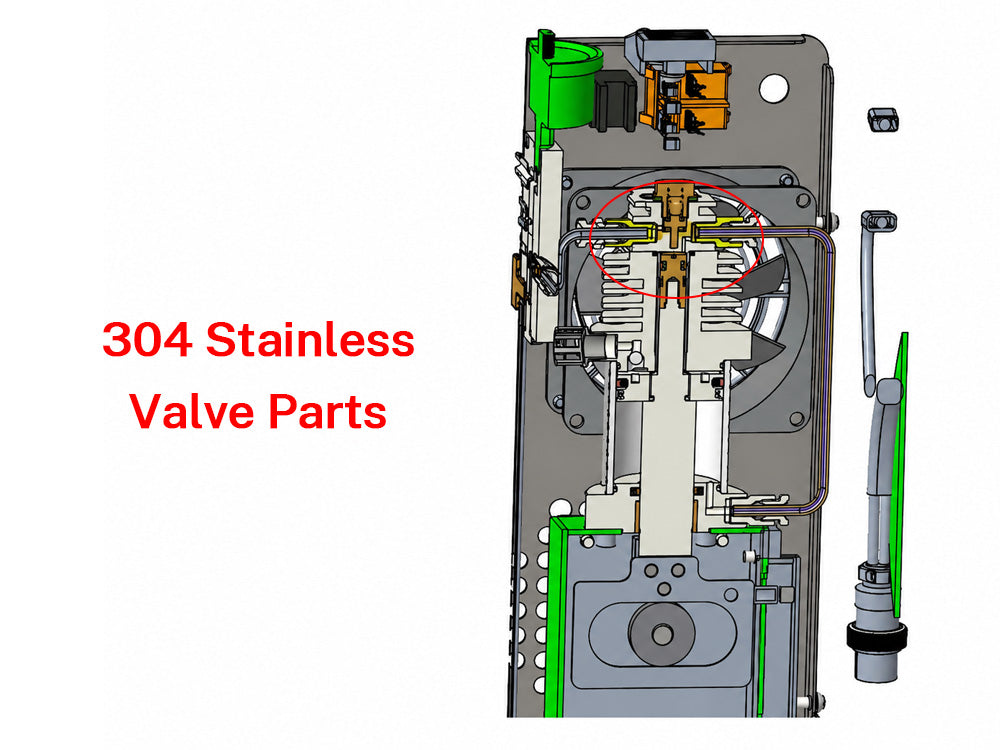

304 Stainless Valve Parts
Key check-valve components use 304 stainless steel to improve hardness and reduce the risk of breakage.

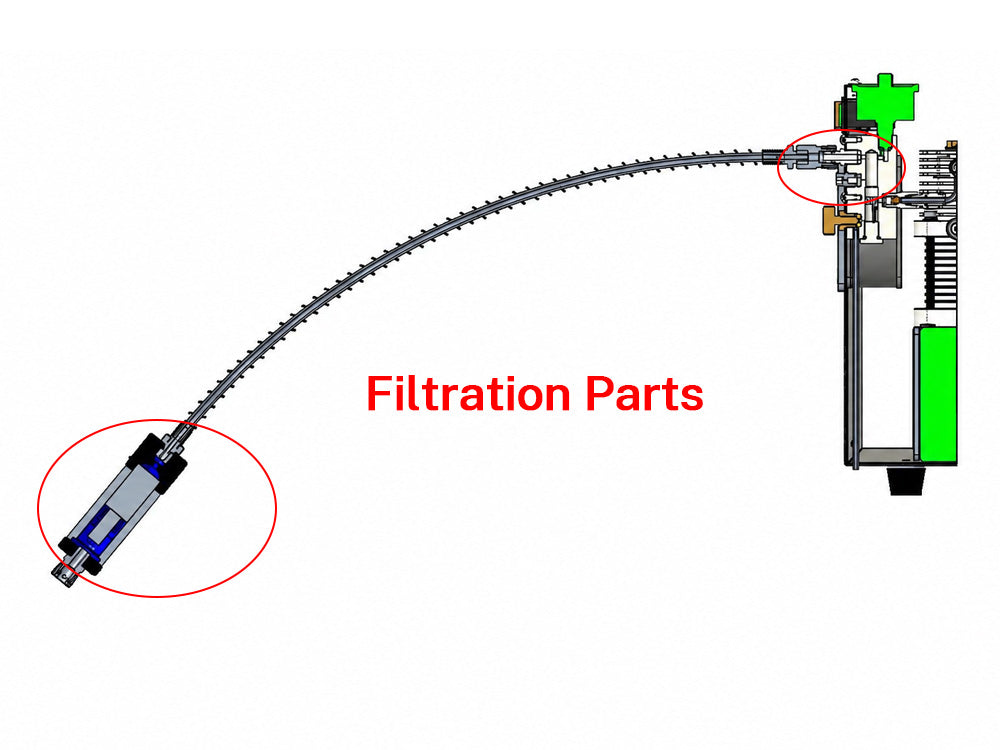

Filtration Support
The filtration system helps reduce moisture, oil mist and fine impurities during Mini Tank refilling.
12.9-Grade Screws
The locking rod structure uses high-strength 12.9-grade screws to support stronger fastening and more stable operation.
Heat-Resistant Sealing
FKM sealing rings are used for better heat resistance and longer-lasting sealing performance under repeated use.
304 Stainless Valve Parts
Key check-valve components use 304 stainless steel to improve hardness and reduce the risk of breakage.
Filtration Support
The filtration system helps reduce moisture, oil mist and fine impurities during Mini Tank refilling.
How to fill Mini Tank
Before filling, make sure the oil-water filter hose is connected, all fittings are secure, and the target pressure is set to the rated working pressure of your Mini Tank.
① Set voltage
Adjust 115V / 230V.

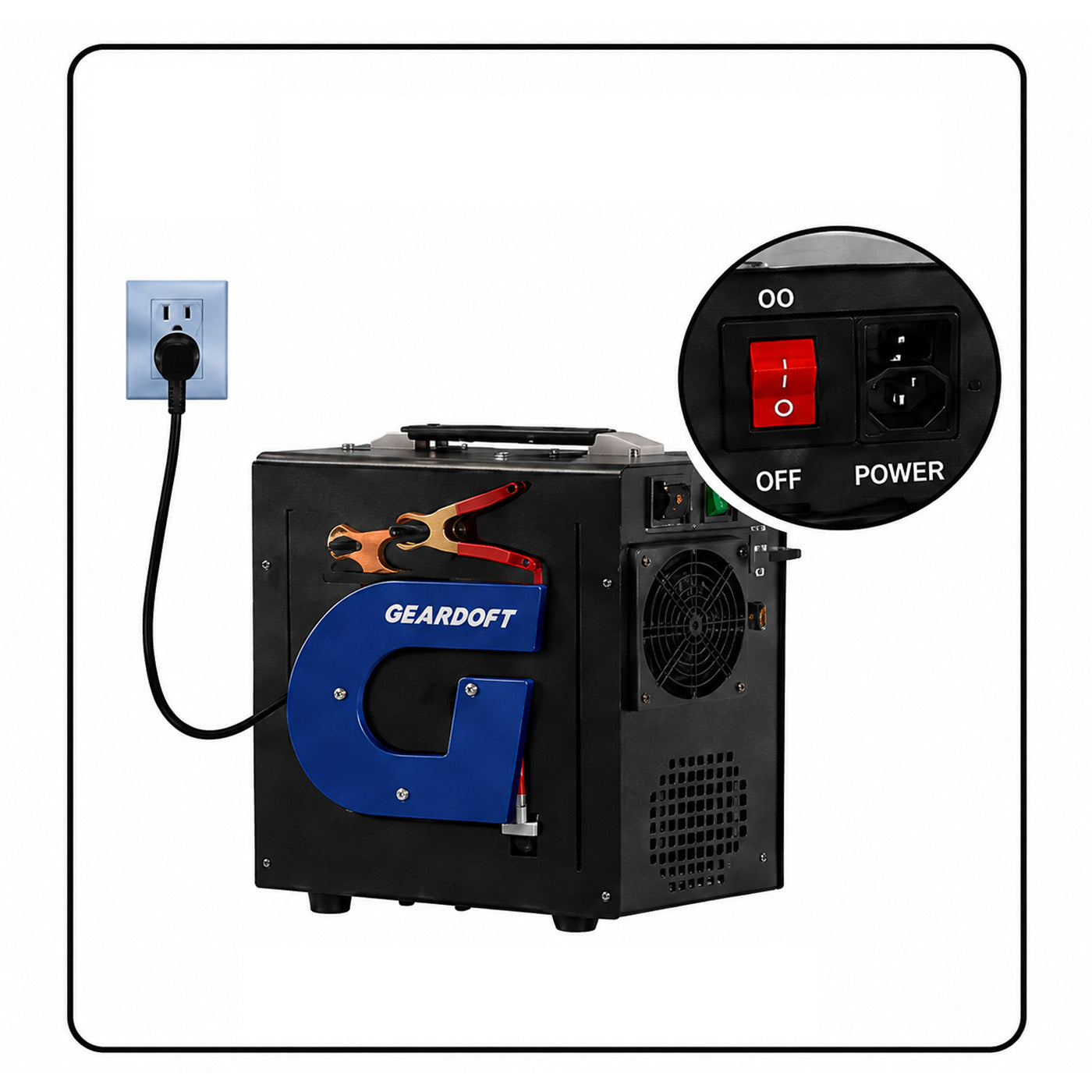

② Connect AC power
Plug in power cord.

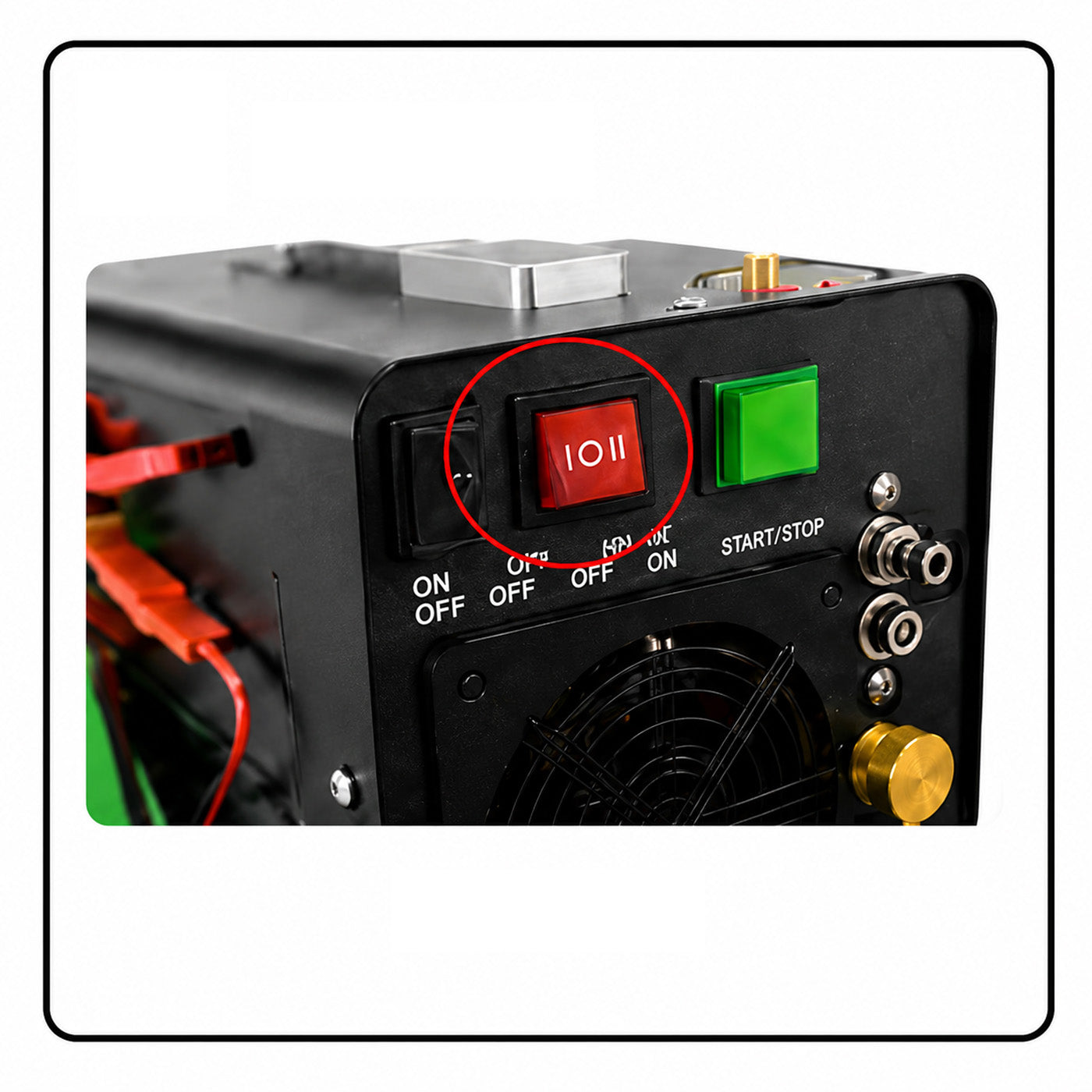

③ Power ON
Switch ON.

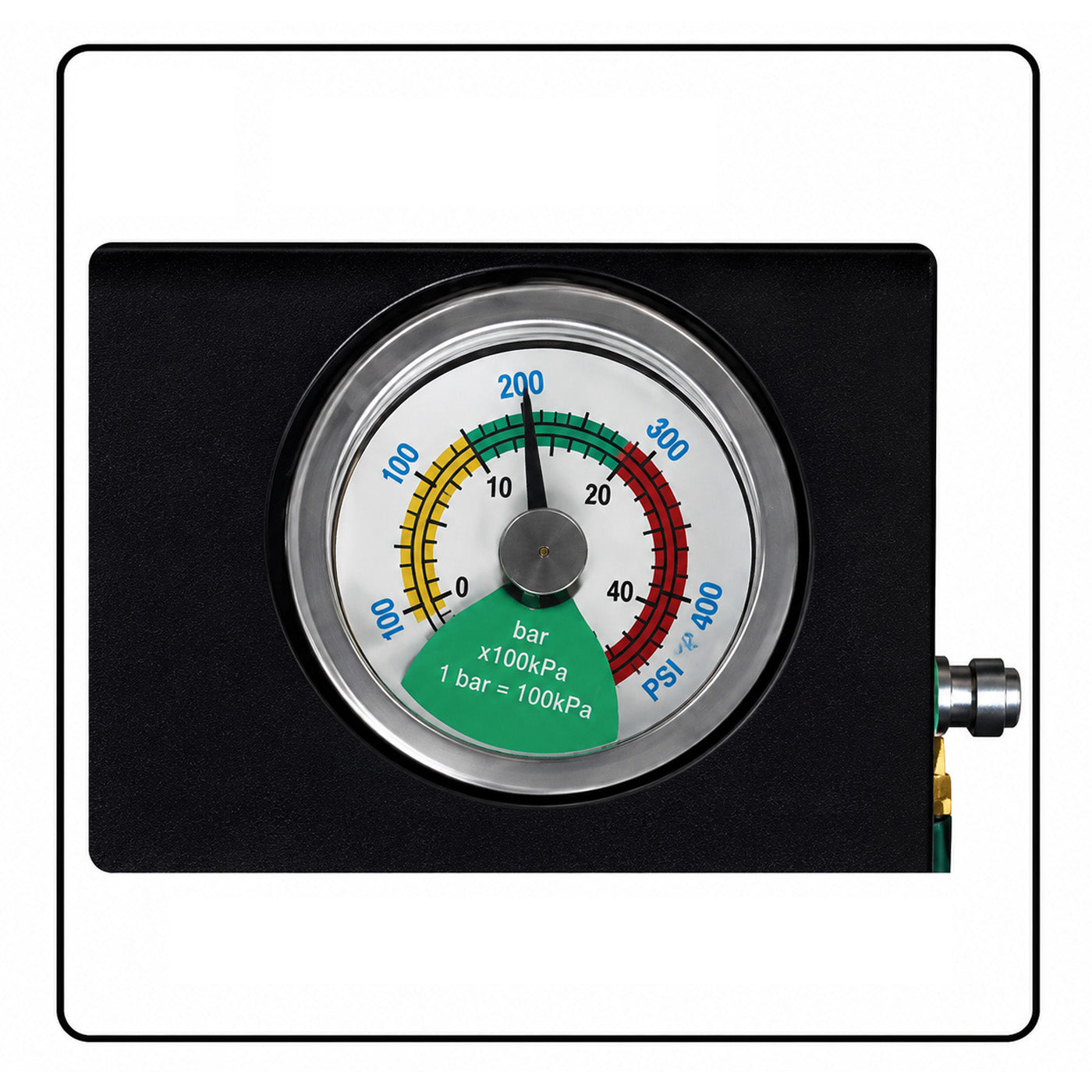

④ Set pressure
Set to 200 BAR / 3000 PSI.

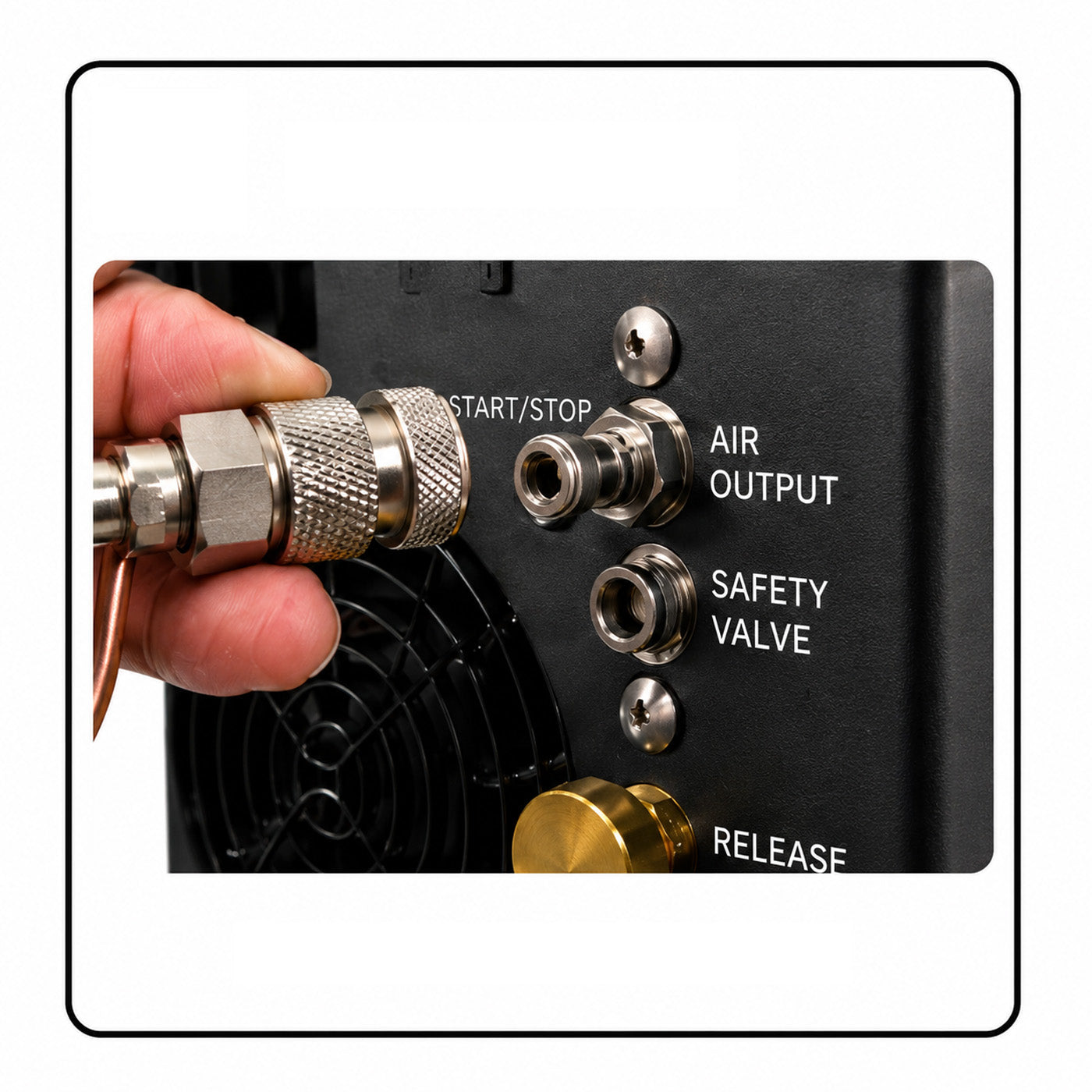

⑤ Connect hose
Connect hose to compressor.

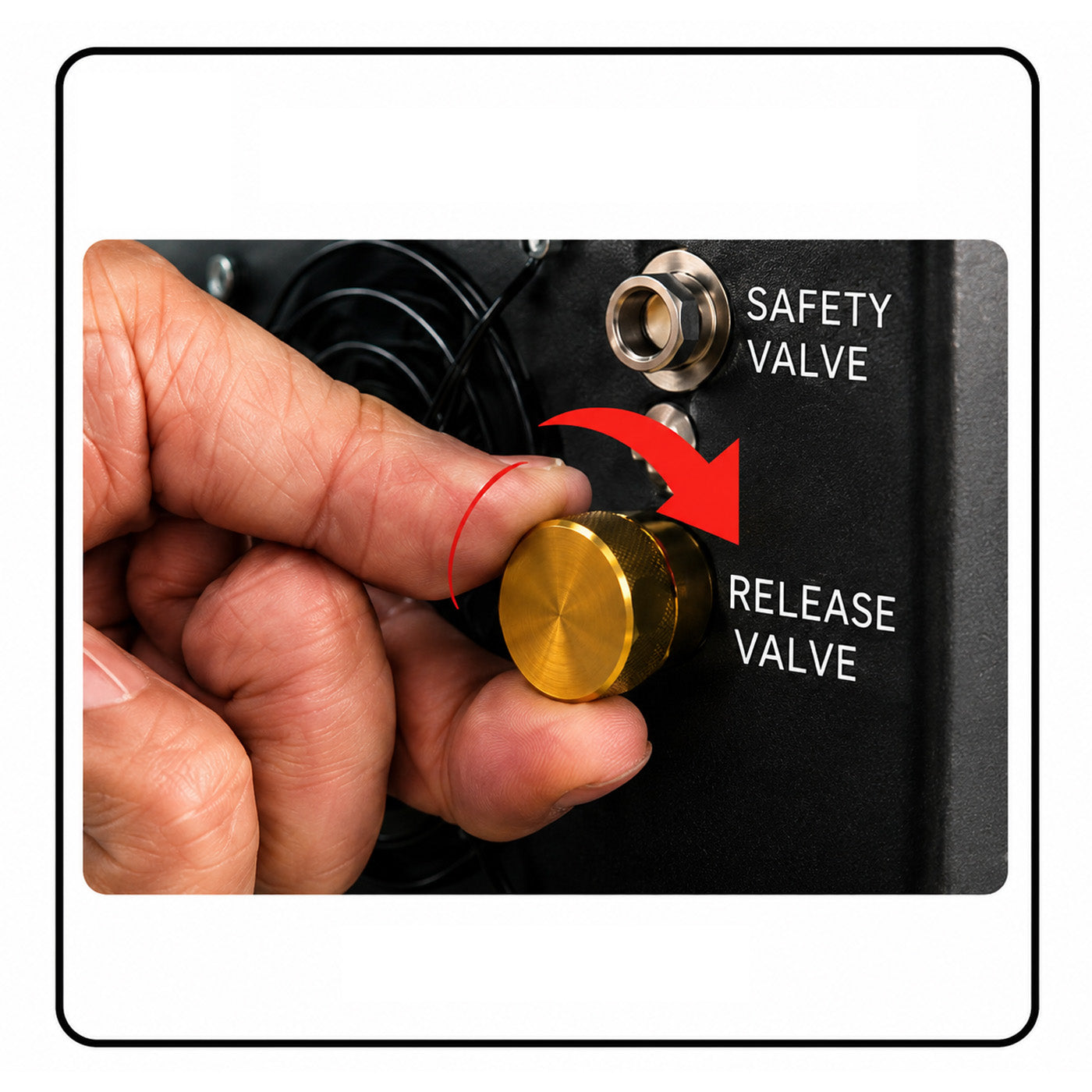

⑥ Close bleed valve
Turn clockwise.

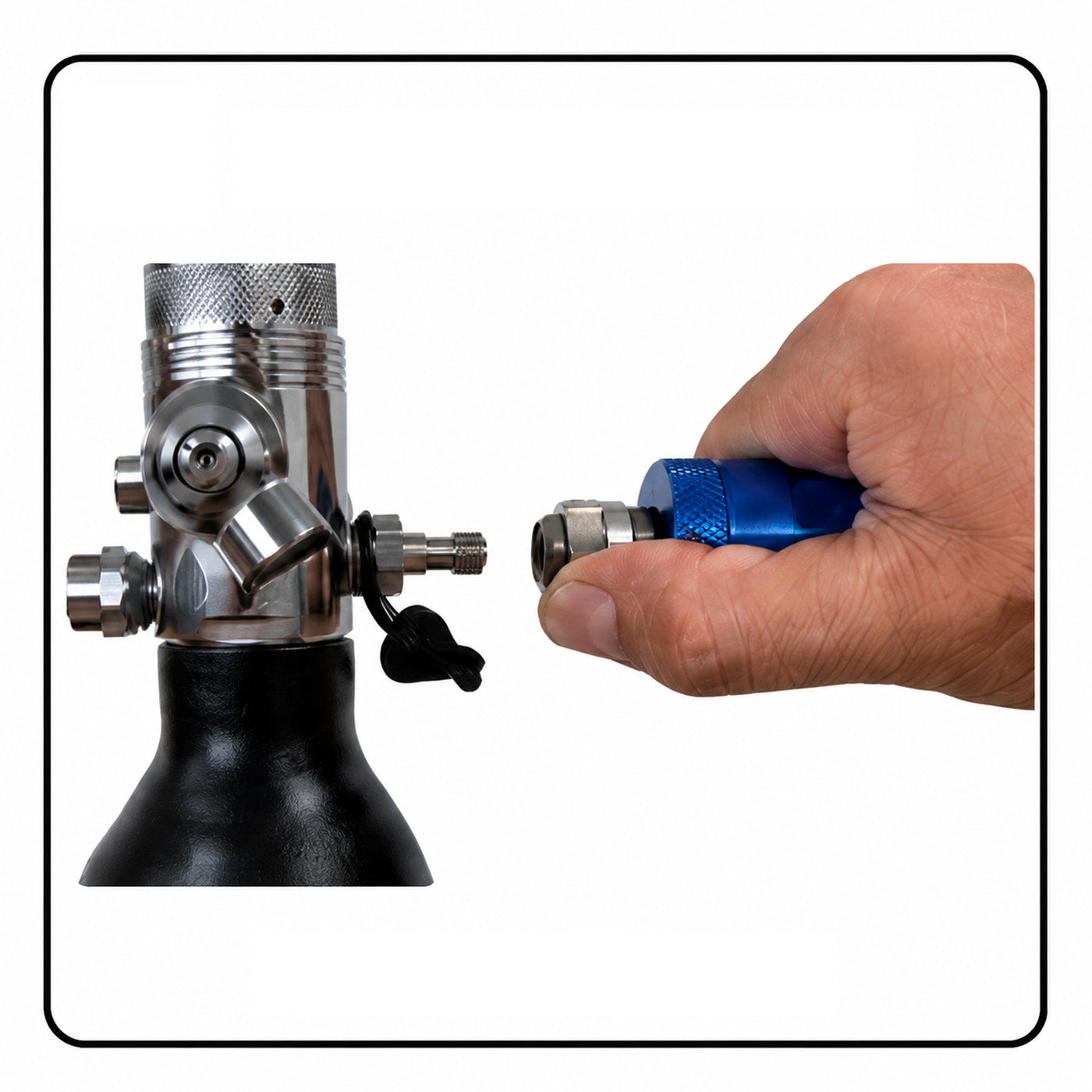

⑦ Connect to Mini Tank
Lock connector securely.

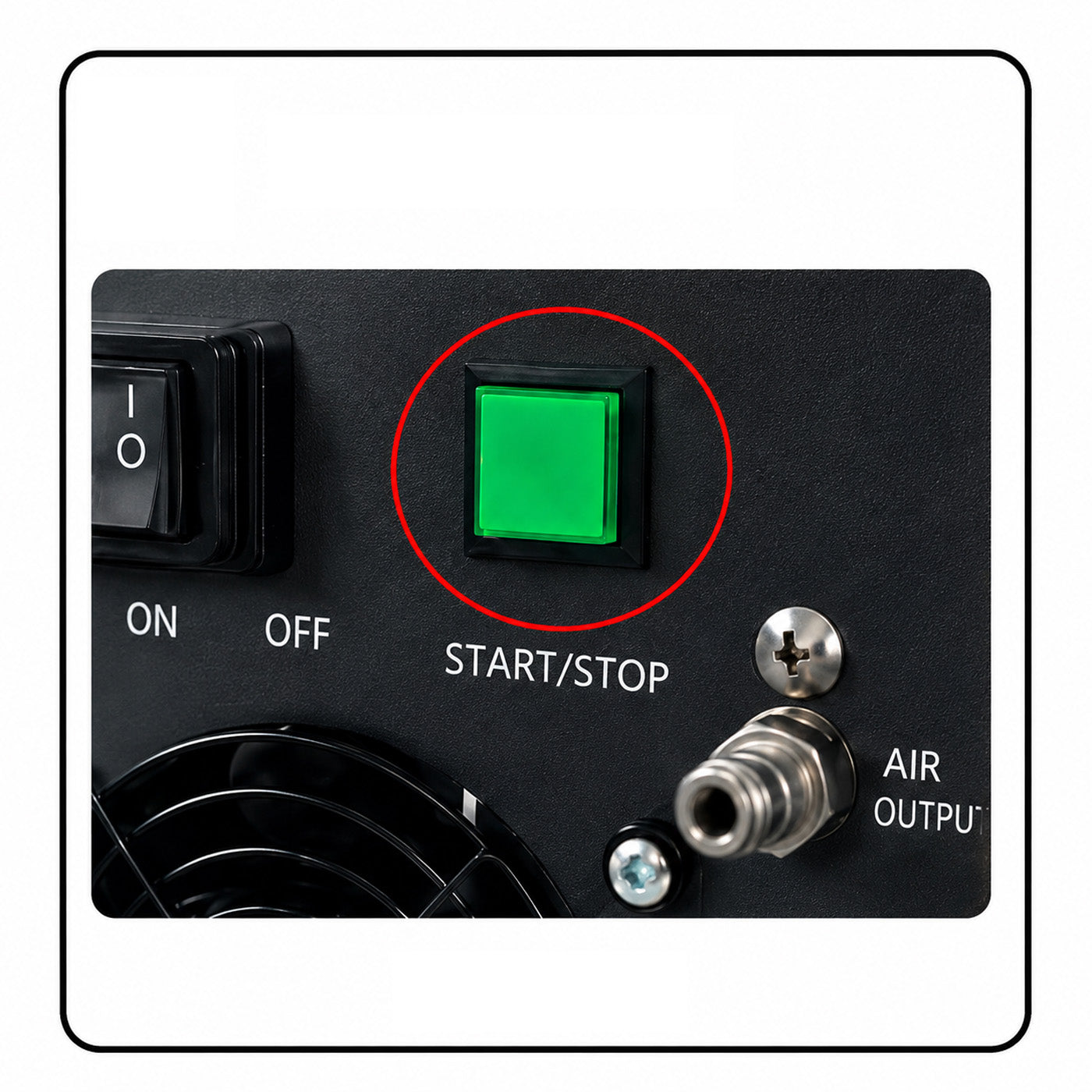

⑧ Press START
Start filling.

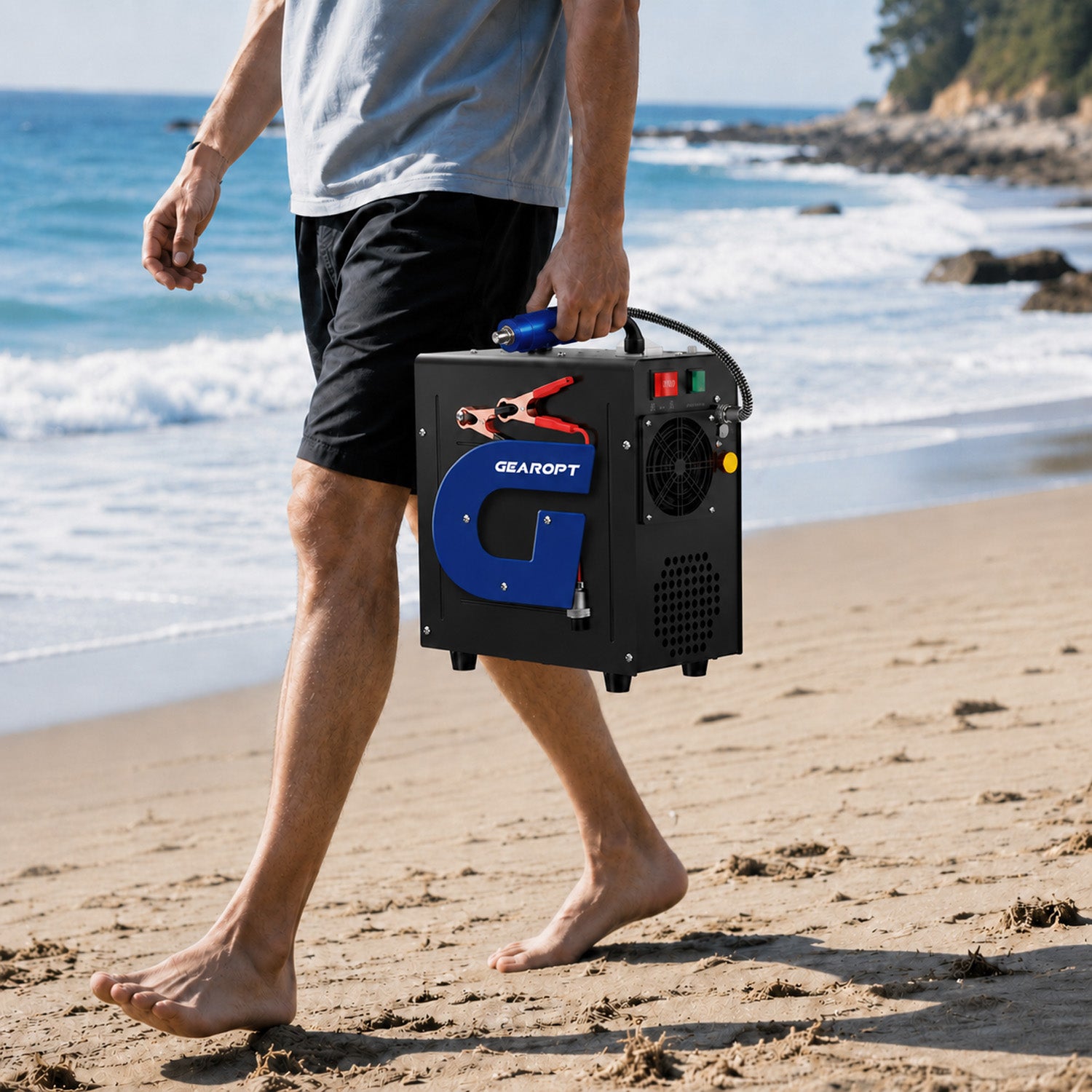

Go Anywhere. Do Anything
Prepare responsibly before every water session.
Protect What You Explore.
The ocean gives us freedom. It deserves our respect.
Every dive reminds us why clean water matters — for marine life, for future adventures, and for everyone who feels at home in the sea.
Go anywhere. Do anything. Leave nothing behind.
Built for Water. Made to Last.
The ocean gives us freedom, movement and stillness. But even what feels endless is more fragile than it looks.
At GEAROPT, we design water-sports products with long-term use in mind. We focus on durability, responsible maintenance and practical product choices that help reduce unnecessary waste.
From rechargeable audio products to reusable Mini Tank systems and refill accessories, our goal is simple: create gear that supports adventure while showing respect for the water that makes it possible.
Our Approach
FAQ
1. Can I use it for the GEAROPT 0.5L and 1.0L Mini Tank?
Yes. It is designed as an electric refill support option for compatible GEAROPT 0.5L and 1.0L Mini Tank systems. Always use the required filter setup and follow the product manual.
2. How long does filling take?
Approximate filling time may vary depending on cylinder size, remaining pressure, temperature and operating conditions. As a reference, filling time is approximately 11 minutes for a 0.5L tank and approximately 20 minutes for a 1.0L tank.
3. What pressure should I set?
Set the compressor according to the rated working pressure of your Mini Tank. For GEAROPT Mini Tanks, do not exceed 200 BAR / 3000 PSI unless otherwise stated in the product manual.
4. Do I need to use the oil-water filter hose?
Yes. Always use the required oil-water filter hose and filter elements when filling a Mini Tank. The filter setup helps reduce moisture and impurities in the compressed air.
5. Can I leave the compressor running by itself?
No. The GEAROPT High-Pressure Compressor features preset pressure and automatic shutoff. It will automatically stop once the target pressure is reached, and will power off if it overheats. This frees your hands during operation, but you should still monitor the compressor, pressure gauge, and temperature to ensure safe filling and proper handling. Never leave it completely unattended.
6. Does it need oil or water cooling?
This compressor uses an oil-free design and built-in cooling fans. It does not require an external water-cooling pump or regular oil maintenance. Always follow the product manual and allow the compressor to cool down when needed.
7. Can I use oxygen, Nitrox or industrial gas?
No. Do not use oxygen, Nitrox, industrial gas, contaminated air or any unauthorized gas source. Fill only with clean, dry, breathable compressed air according to the product manual and applicable local regulations.
8. Can I use my own compressor or third-party compressor for GEAROPT Mini Tanks?
Use only compatible refill equipment, approved connection accessories and the required filter setup. If you are unsure whether a compressor or adapter is suitable, contact GEAROPT support before filling.
9. What should I do after filling?
Stop filling at the rated pressure, turn off the compressor, release pressure from the hose according to the product manual, disconnect safely and store the compressor in a clean, dry place.
10. What does the filter system do?
The filter system helps reduce moisture, oil mist and fine impurities during filling. It does not make contaminated or unauthorized air safe to breathe. Always fill only with clean, dry, breathable compressed air.
Important:
High-pressure filling requires proper operation and continuous monitoring.
Always read the product manual before use, use the required filter setup, fill only with clean, dry, breathable air,
and never exceed the rated working pressure of your Mini Tank.
