GEAROPT Pressure Gauge Refill Adapter
◉ High-pressure hose for flexible refill connection
*Always follow the product manual. Fill only with clean, dry, breathable compressed air and never exceed the rated working pressure of your Mini Tank.
Controlled Refill Connection
The GEAROPT Pressure Gauge Refill Adapter is designed to support compatible Mini Tank refilling from an approved high-pressure air source.
It combines a compact adapter body, integrated pressure gauge and high-pressure hose to help users connect refill equipment and monitor pressure during the filling process.
The built-in gauge provides a clear pressure reference during refill preparation, while the flexible hose makes the connection setup easier to manage.
Use it only with compatible GEAROPT Mini Tank systems, approved refill equipment and proper high-pressure filling procedures.
Technical Core
Yoke
High-pressure refill hose
50cm
0–30 MPa
Aluminum
Clean, dry, breathable compressed air only
Refill connection and pressure monitoring support
Compatible GEAROPT Mini Tank systems and approved refill setups
Do not exceed 200 BAR / 3000 PSI or the rated working pressure of your Mini Tank
How it works
Step 1

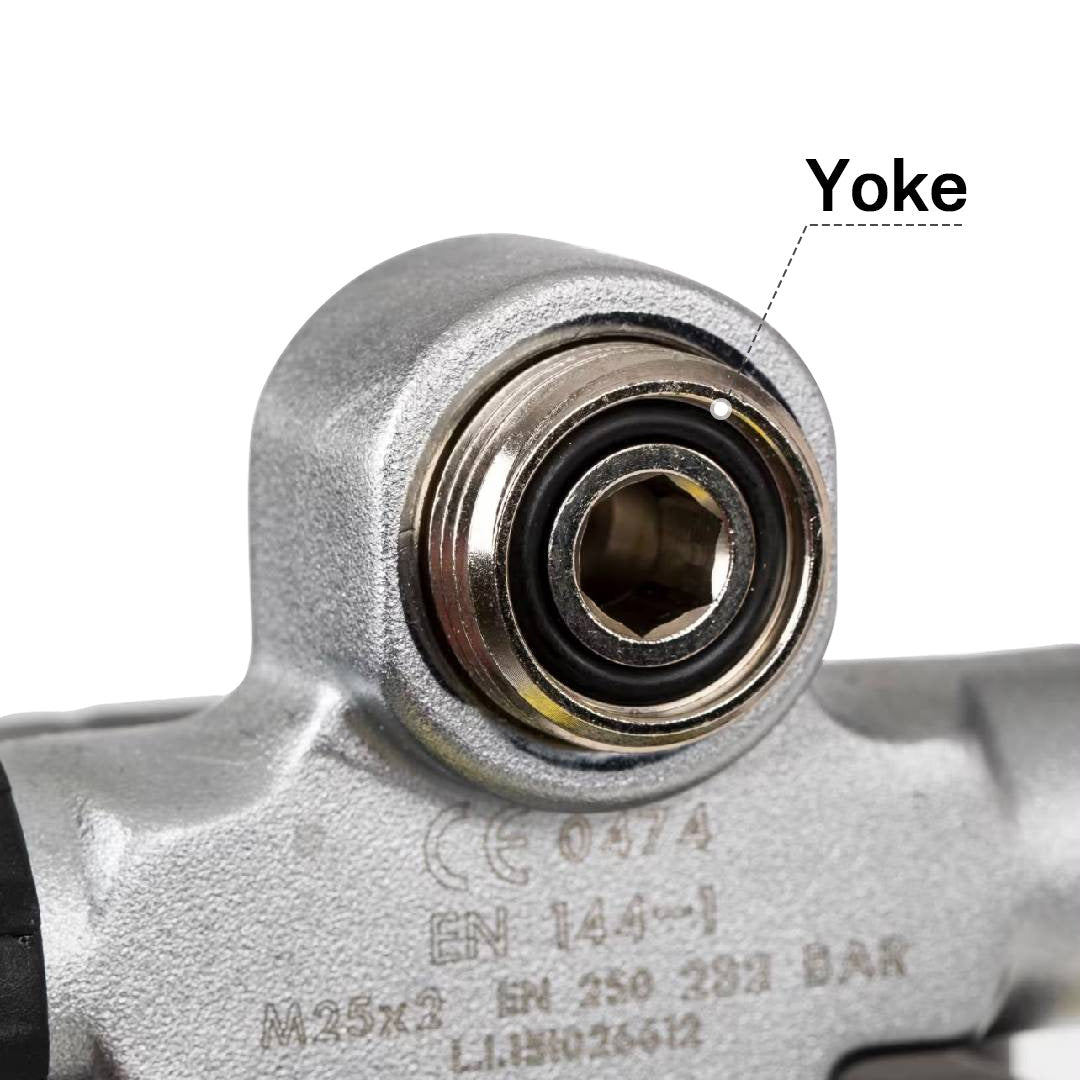

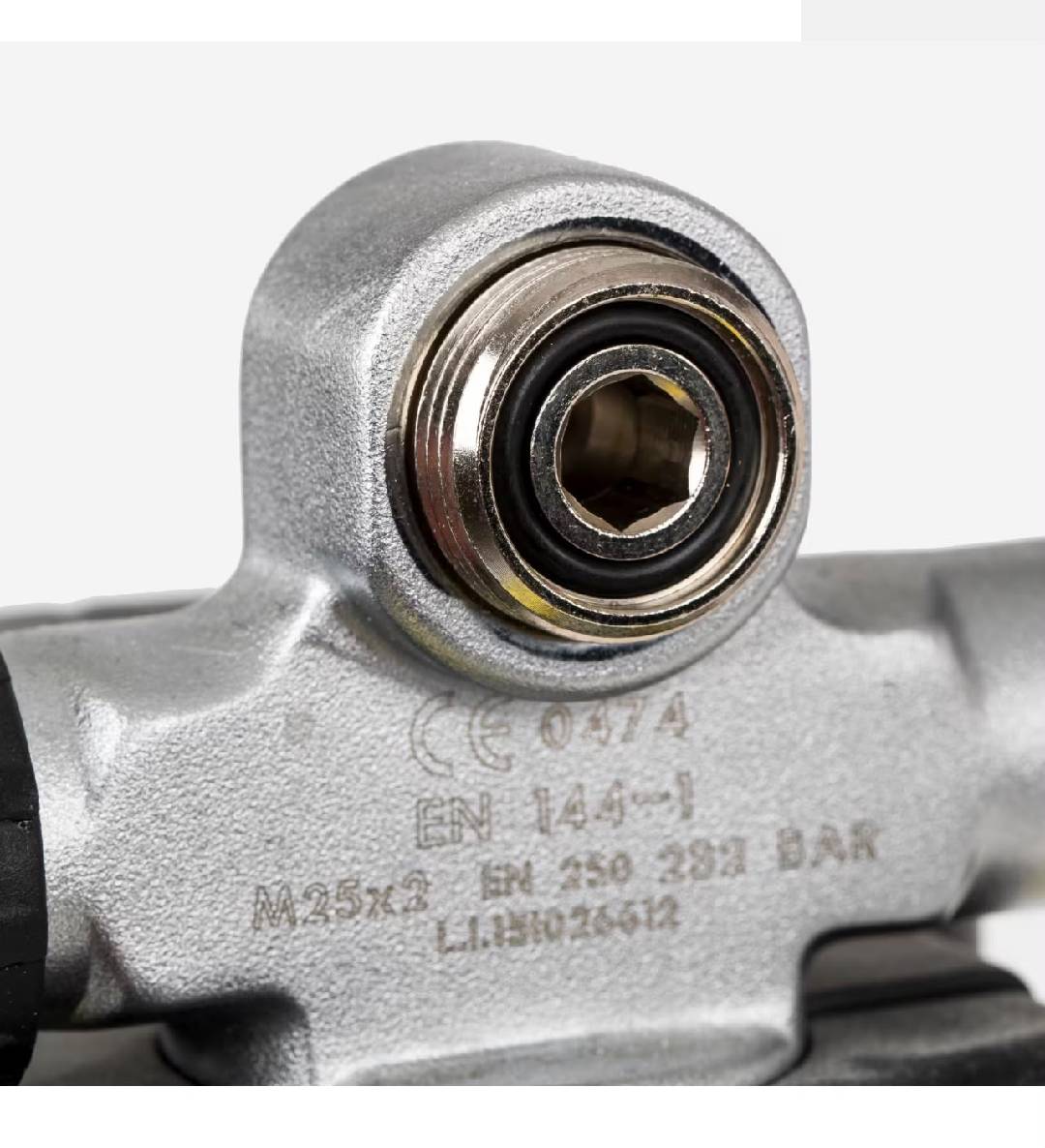

Check the Scuba Tank Valve Type
Before connecting the refill adapter, confirm whether your scuba tank uses a Yoke valve.
If your tank already has a Yoke valve, you can proceed with the refill setup directly.
If your tank uses a DIN valve, an additional DIN-to-Yoke adapter is required before connection.
Step 2

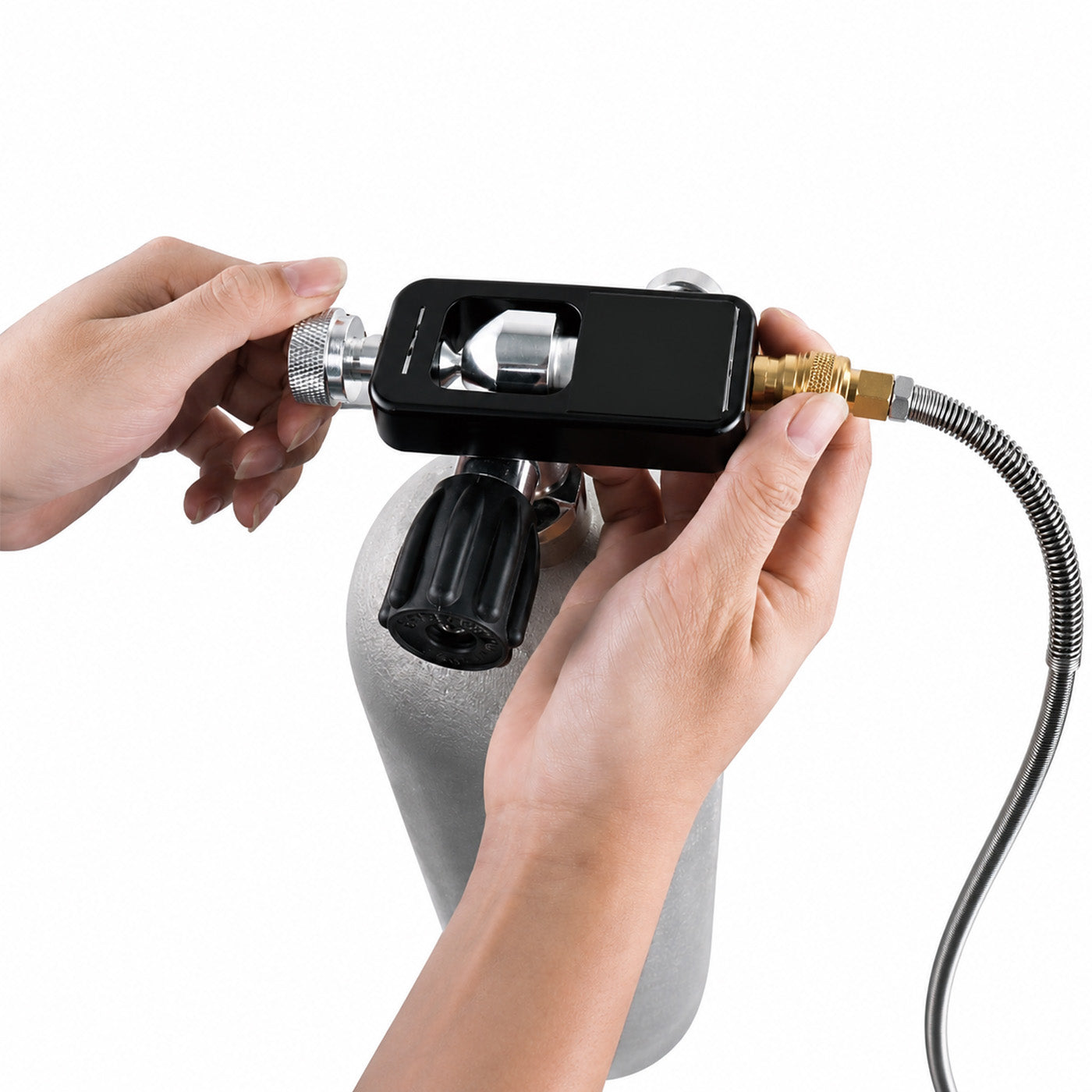

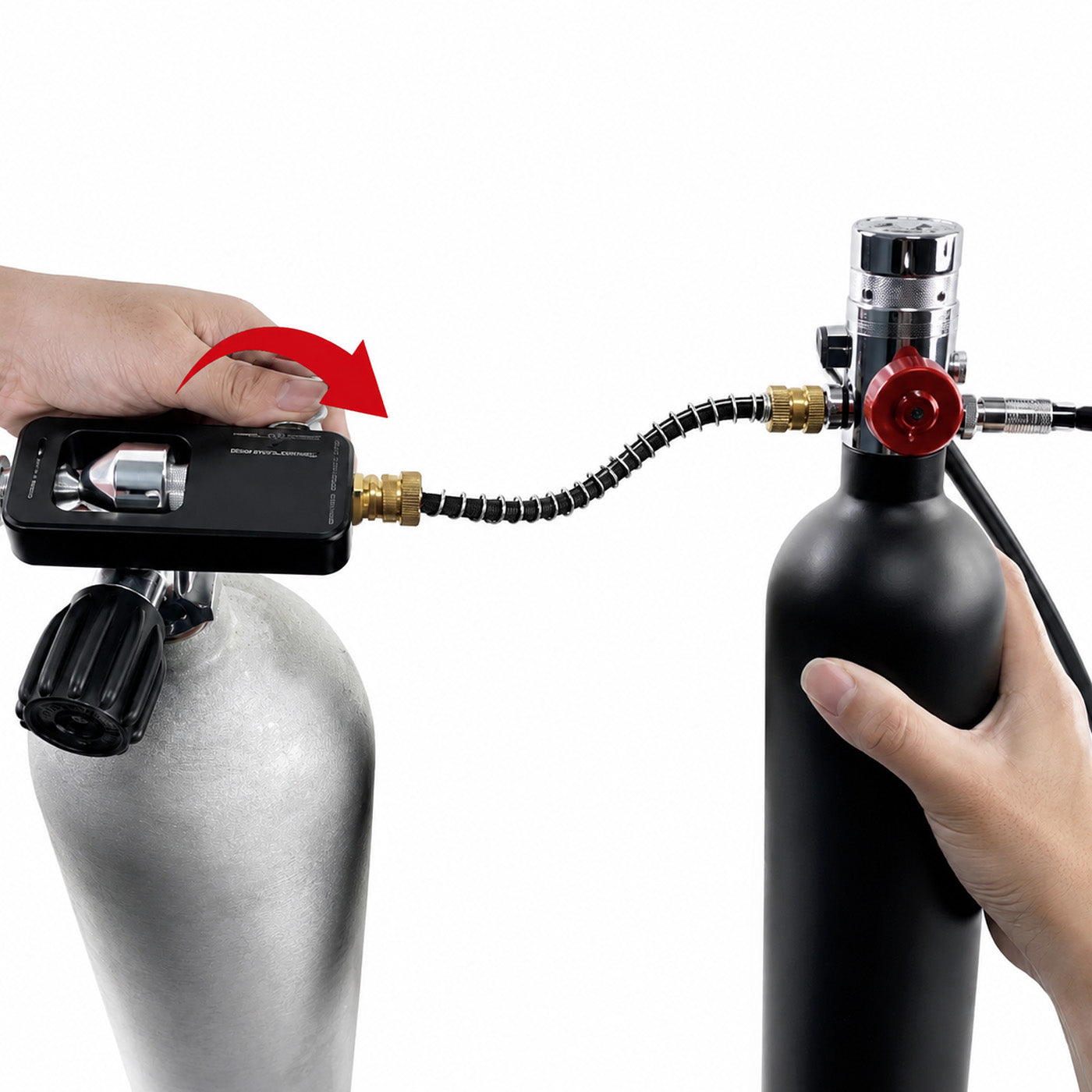

Connect the Adapter to the Air Source
Attach the Pressure Gauge Refill Adapter securely to the compatible scuba tank valve or approved high-pressure air source.
Make sure the connector is properly seated and tightened before opening any valve.
Step 3

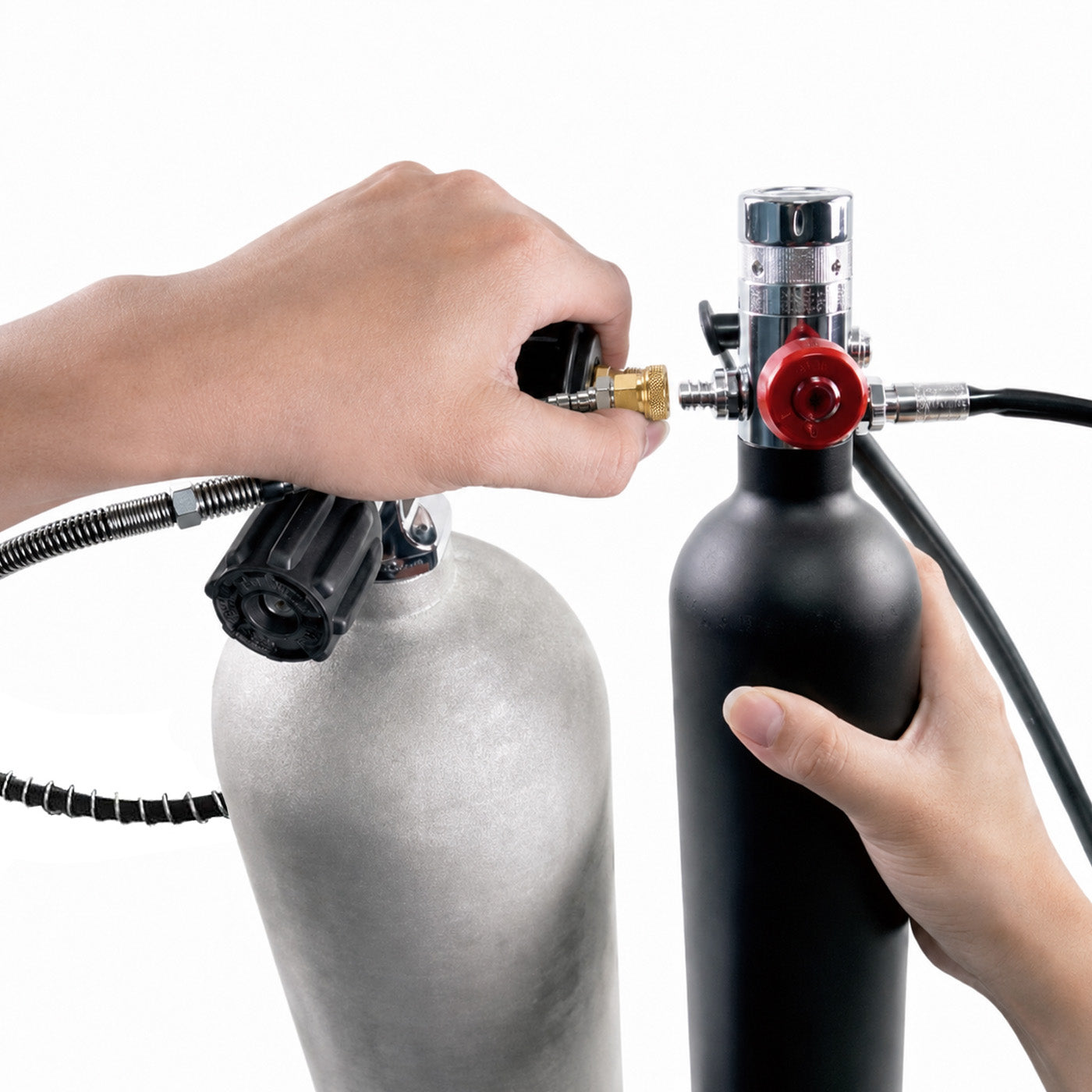

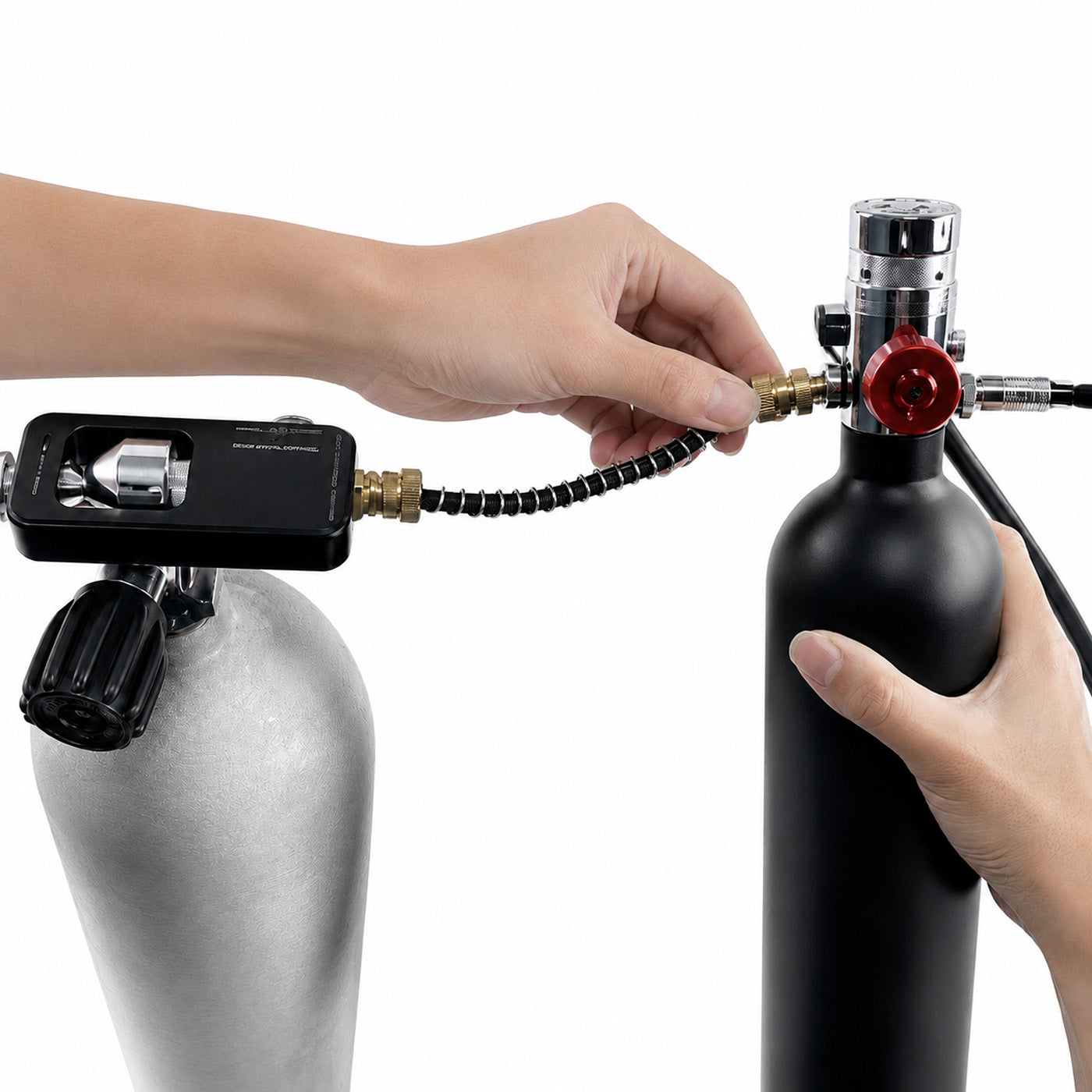

Connect the Mini Tank
Connect the high-pressure hose to the compatible GEAROPT Mini Tank refill port.
Check the hose, fittings, seals and pressure gauge before filling. Do not continue if any part appears loose, damaged or leaking.
Step 4

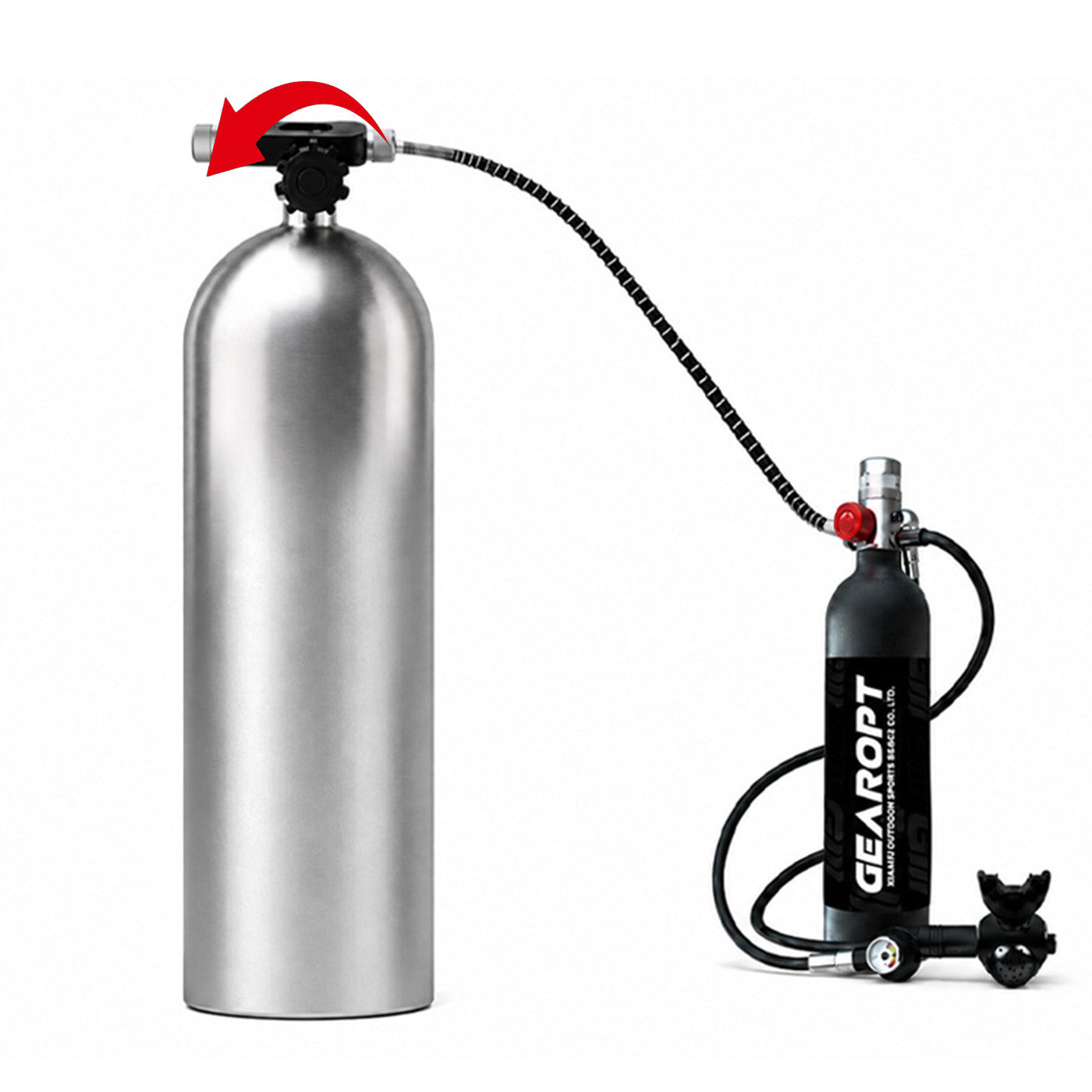

Fill Slowly and Monitor Pressure
Open the valve slowly and begin filling.
Monitor the integrated pressure gauge throughout the filling process. Stop filling when the pressure reaches 200 BAR / 3000 PSI or the rated working pressure of your Mini Tank.
Step 5
Close the Valve and Release Pressure
After filling, close the air source valve first.
Then release the remaining pressure from the hose according to the product manual before disconnecting the adapter.
Step 6
Disconnect Safely
Disconnect the adapter and high-pressure hose only after pressure has been safely released.
Check the Mini Tank, adapter, hose and seals after filling, then store the adapter in a clean, dry place.
Go Anywhere. Do Anything
Prepare responsibly before every water session.
Safety First
The GEAROPT Pressure Gauge Refill Adapter is a high-pressure refill accessory. It must be used responsibly and according to the product manual.
Always:
• Read the product manual before use.
• Use only compatible Mini Tank systems and approved refill equipment.
• Fill only with clean, dry, breathable compressed air.
• Check the adapter, hose, seals and pressure gauge before filling.
• Monitor pressure during the filling process.
• Do not exceed 200 BAR / 3000 PSI or the rated working pressure of your Mini Tank.
• Release pressure safely before disconnecting.
• Stop using the adapter if leakage, hose damage, gauge abnormality or abnormal pressure behavior occurs.
• Do not use oxygen, Nitrox, industrial gas, contaminated air or unauthorized gas sources.
FAQ
What is this adapter used for?
The GEAROPT Refill Adapter with Pressure Gauge & Hose is used to connect compatible refill equipment and monitor pressure during Mini Tank filling.
Does it include a pressure gauge?
Yes. It includes an integrated pressure gauge to help monitor pressure during the filling process.
Does it include a high-pressure hose?
Yes. This product includes a high-pressure hose for a more flexible refill connection setup.
Can I use it with the GEAROPT 0.5L and 1.0L Mini Tank?
It is designed for compatible GEAROPT Mini Tank systems. Please confirm the connector type and product option before use.
What air should I use?
Only clean, dry, breathable compressed air. Do not use oxygen, Nitrox, industrial gas, contaminated air or any unauthorized gas source.
Can I exceed 200 BAR / 3000 PSI?
No. Never exceed the rated working pressure of your Mini Tank.
What should I check before filling?
Check the adapter body, high-pressure hose, seals, connector and pressure gauge. Do not use the product if any part appears damaged, leaking or abnormal.
What should I do after filling?
Stop at the rated pressure, release pressure according to the product manual, disconnect safely and store the adapter and hose in a clean, dry place.
Can I use it with any scuba cylinder?
Only use it with compatible scuba cylinders, approved refill equipment and the correct connector setup. If you are unsure, contact GEAROPT support before filling.
What should I do if air leaks during filling?
Close the air source valve, wait for airflow to stop, release pressure according to the product manual, and check the adapter, seals, hose and connector before reconnecting. Do not continue filling if leakage remains.
